PCE-SDL 1 | PCE Instruments
Sound level meter, 30 to 130 dB, ±1.4 dB, PCE Instruments PCE-SDL 1
Order No.: 31K0238
EAN: 4250348711434
MPN:
PCE-SDL 1
Unit Price (€ / pc.)
243.9143 € *
Available in 2 Days: 45 pcs. - if ordered today

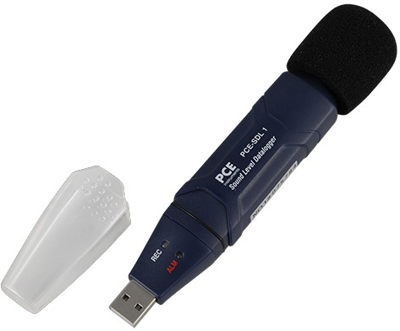

USB sound level meter, PCE-SDL 1, PCE Instruments
PCE-SDL 1 is a class 2 (type 2) data-logging sound level meter, sound pressure level (SPL) meter, noise meter or decibel (dB) meter used for long-term acoustic measurements.
The Windows-compatible software included with the meter allows for the display of a progressive graph of the data collected. The software also enables the user to set alarm limits indicated on the meter via flashing LEDs.
Features
- Measuring range: 30 ... 130 dB
- Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval
- NORM (normal) and PEAK modes
- Adjustable alarm limits
- LED alarm indicators
- A and C frequency weighting
- Adjustable measurement interval
- Manual and auto-start modes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | (L x W x H) 130 x 25 x 30 mm | |
| Accuracy | ±1.4 dB | |
| measurement range | 30 to 130 dB | |
| Product type | sound level meter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90278990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
