PCE-T 1200 | PCE Instruments
Data logger, temperature, SD card, PCE Instruments PCE-T 1200
Order No.: 31K0066
EAN: 4250348712004
MPN:
PCE-T 1200
Unit Price (€ / pc.)
999.6595 € *
Available in 4 Days: 9 pcs. - if ordered today

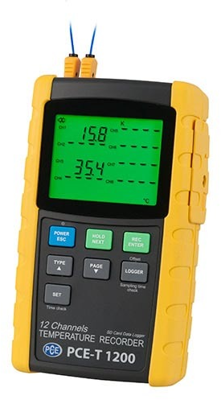

Climate meter, PCE-T 1200, PCE Instruments
PCE-T 1200 is a 12-channel climate meter that accommodates SD cards up to 16 GB in size. The optional software allows the climate meter to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5" LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 ... CH 8). With just the press of a button, the remaining channels (CH 9 ... CH 12) can be viewed. The climate meter works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.
Features
- 12-channel datalogger for temperature (°C / F)
- 4.5" graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
- Adjustable data recording timer interval
- Compatible with 6 different types of thermocouples
- High and low alarm for each inputbr/> - Indication of maximum and minimum values
- Accommodates up to 16 GB SD memory card to save measured data
- Automatic temperature compensation (ATC)
- Hold function to freeze the values indicated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Recording interval | 1 to 3600s | |
| Logging Function | temperature | |
| Interfaces | SD card |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90251900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
