Material tester for metals, PCE-COM 20, PCE Instruments

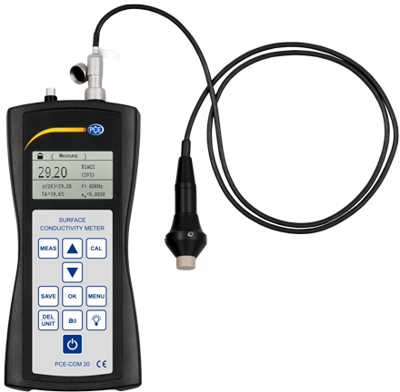

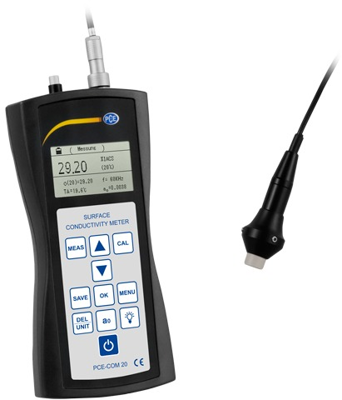

PCE-COM 20 is a portable handheld non-destructive material tester for non-ferrous metals. This non-destructive testing (NDT) device uses eddy current to determine the electrical conductivity of non-ferrous metals such as aluminum and copper.

Measurement of the electrical conductivity of non-ferrous metals, such as aluminum, copper, titanium, magnesium or bronze, is necessary in applications involving electrical conductors and the characterization of alloys. Typical application areas are the assessment of strength differences in heat-treated or hardened materials, the authenticity testing of coin alloys, the verification of alloy inhomogeneities in critical components and the sorting of materials.

Features

• Eddy current measuring principle
• For non-ferrous metals and alloys
• Non-destructive testing (NDT)
• 60 kHZ operating frequency
• Large measuring range up to 112% IACS or 65 MS/m
• Memory for up to 500 groups of measurements
• Automatic temperature compensation (ATC)
• Lift-off compensation up to 500 μm
• Automatic calibration
