PCE-TG 300-NO7 | PCE Instruments

Thickness Meter PCE-TG 300-NO7

Order No.: 31K0785
EAN: 4250348731128
MPN:
PCE-TG 300-NO7

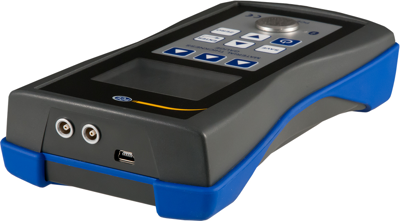

PCE-TG 300-NO7 PCE Instruments Coating thickness gauges Image 1

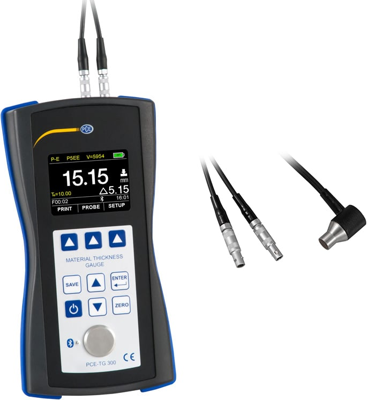

PCE-TG 300-NO7 PCE Instruments Coating thickness gauges Image 2

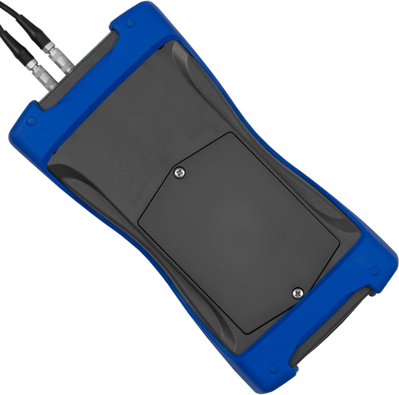

PCE-TG 300-NO7 PCE Instruments Coating thickness gauges Image 3
PCE-TG 300-NO7 PCE Instruments Coating thickness gauges Image 4
Image may differ
Unit Price (€ / pc.)
965.1257 € *
Available in 4 Days: 14 pcs. - if ordered today
Total Price:
965.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
965.1257 €

Thickness meter, PCE-TG 300-NO7, PCE Instruments

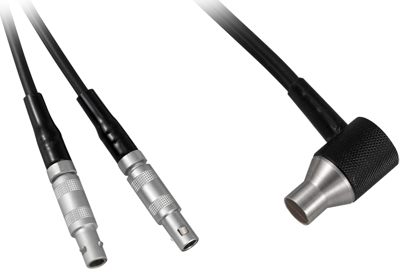

The PCE-TG 300-NO7 is a thickness meter with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored.

Features

  • Large measuring range
  • Battery operation
  • Error and voids detection
  • Internal measurement data memory
  • Print via Bluetooth

Scope of delivery

  • 1 x Material thickness gauge PCE-TG 300-NO7
  • 1 x Sensor PCE-TG-NO7
  • 1 x 100 ml Coupling gel
  • 1 x Carrying case
  • 4 x AA batteries
Technical specifications
Product type material thickness gauge
measurement range 0.65 to 200 mm
Resolution 0.01 mm, 0.1 mm, 0.001 mm
Logistics
Country of origin DE
Customs tariff number 90318080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
