PCE-WV A | PCE Instruments
PCE Instruments wind direction transmitter, PCE-WV A
Order No.: 31K0885
EAN: 4250348722416
MPN:
PCE-WV A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
201.11 € *
Available in 2 Days: 7 pcs. - if ordered today

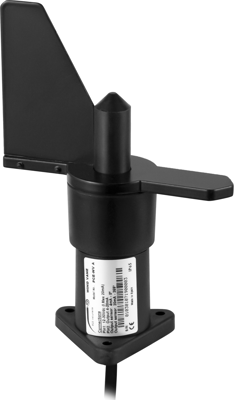

Wind direction sensor, PCE-WV A, PCE Instruments

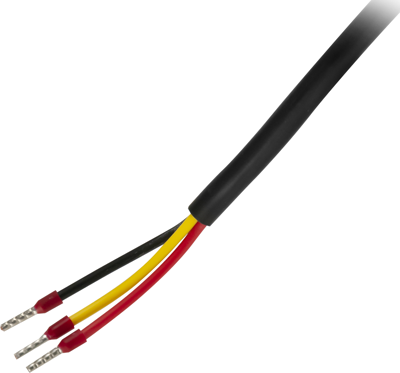

The Air Flow Meter was developed to measure the wind direction in the industrial environment. This Air Flow Meter can be connected to data loggers, process control systems, displays. In order to protect the air flow meter from external weather influences, it is protected according to IP65. To connect the Air Flow Meter to an evaluation, a 20 m cable is installed on the wind direction sensor.
The Air Flow Meter can be used for irrigation control, automation in greenhouses, on solar trackers, cable cars in ski areas, cranes, wind turbines, weather stations and wherever the wind or wind direction must be observed precisely.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | wind direction transmitter | |
| Version | output: 4 to 20 mA | |
| measurement range | 0.8 m/s, 0 to 360° | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 80 °C | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 90319000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
