PCE Instruments flow meter, PCE-UFM 8
Order No.: 31K0813
EAN: 4250348732606
MPN:
PCE-UFM 8
Unit Price (€ / pc.)
845.1499 € *
Available in 2 Days: 5 pcs. - if ordered today
Flow meter, PCE-UFM 8, PCE Instruments

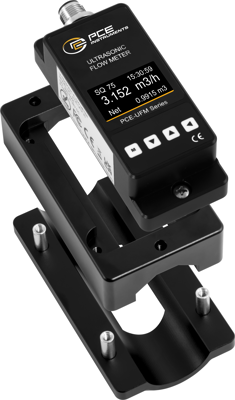

The PCE-UFM 8 flow meter offers the capability to measure flow rates from ±0.1 m/s to ±5 m/s using ultrasonic technology. This HVAC meter is suitable for small pipes with a diameter of DN8 / 1/4" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe.
This HVAC meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
Features
- Display of flow, Volume flow
- Pipe size: DN8
- Suitable for various pipe materials and media
Scope of delivery
- 1 x Flow meter for fixed installation PCE-UFM 8
- 1 x connecting cable 2 m
- 4 x coupling pad
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 0.001 m/s | |
| measurement range | 0.1 to 5 m/s | |
| Degree of protection (IP) | IP54 | |
| max. operating temperature | 50 °C | |
| Accuracy | 2 % | |
| min. operating temperature | -10 °C | |
| Version | for pipe size DN8 | |
| Product type | flow meter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90261021 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
