PCE-UFM 25 | PCE Instruments
PCE Instruments flow meter, PCE-UFM 25
Order No.: 31K0801
EAN: 4250348732644
MPN:
PCE-UFM 25
Unit Price (€ / pc.)
845.1499 € *
Standard delivery time from the manufacturer is: 9 Weeks
Flow meter, PCE-UFM 25, PCE Instruments

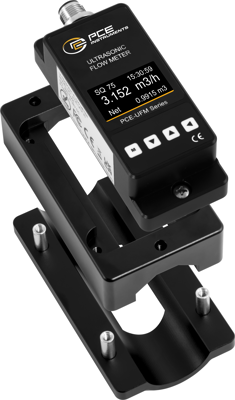

The PCE-UFM 25 flow meter offers the capability to measure flow rates from ±0.1 m/s to ±5 m/s using ultrasonic technology. This HVAC meter is suitable for small pipes with a diameter of DN25 / 1" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe.
This HVAC meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
Features
- Display of flow, Volume flow
- Pipe size: DN25
- Suitable for various pipe materials and media
Scope of delivery
- 1 x Flow meter for fixed installation PCE-UFM 25
- 1 x connecting cable 2 m
- 4 x coupling pad
Technical specifications
| max. operating temperature | 50 °C | |
| measurement range | 0.1 to 5 m/s | |
| Resolution | 0.001 m/s | |
| Version | for pipe size DN25 | |
| min. operating temperature | 0 °C | |
| Degree of protection (IP) | IP54 | |
| Accuracy | 2 % | |
| Product type | flow meter |
Download
Logistics
| Customs tariff number | 90261021 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
