PCE-UFM 20PVC | PCE Instruments

Flow meter, PCE-UFM 20PVC, PCE Instruments

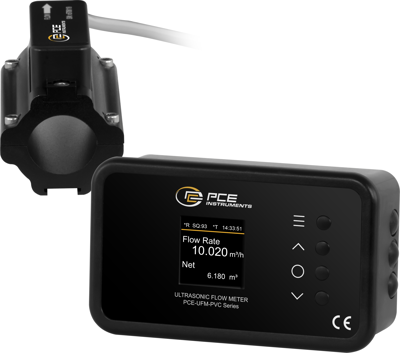

This clamp-on ultrasonic flow meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on PVC pipes with a diameter between 21 and 29 mm. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel. The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters.

Features

• Pipe size: DN20
• Interface: Ethernet
• Includes reusable coupling pads

Scope of delivery

• 1 x Flow meter for fixed installation PCE-UFM 20PVC
• 1 x sensor with Ethernet cable 9 m
• 1 x PoE network cable 2 m
• 1 x ultrasound contact gel
• 1 x silicone seal 1m
• 4 x coupling pad
• 1 x Allen key
