PCE-TDS 75 | PCE Instruments
PCE Instruments flow meter, PCE-TDS 75
Order No.: 31K0777
EAN: 4250348722560
MPN:
PCE-TDS 75
Unit Price (€ / pc.)
1,424.0968 € *
Available in 4 Days: 5 pcs. - if ordered today

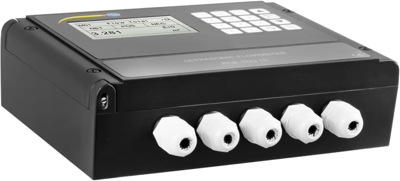

Ultrasonic flow meter, PCE-TDS 75, PCE Instruments
The flow measuring device is a measuring device for fixed installation. The flow rate of liquids in pipes can be determined with this flow meter. The sensors from the flow meter can be mounted directly on the pipes to be measured without having to cut them open. This enables the flow meter to be installed even during operation. Another special feature of the flow meter are the different outputs. It is possible to get the flow rate converted by the flow meter into an analog 4- 20 mA signal. Any other measurement value can be transmitted via the pulse output (OCT) from the flow meter.
Features
- Flow meter for fixed installation
- Different outputs for process connection
- For fixed installation
Scope of delivery
- 1 x Ultrasonic flow meter PCE-TDS 75

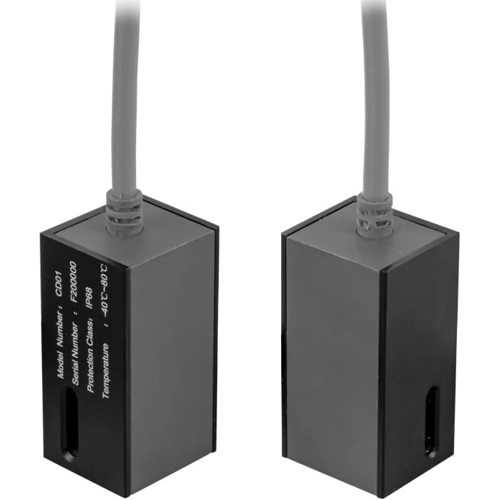

- 2 x flow sensors
- 1 x wall mounting set
- 2 x hose clamp
Technical specifications
| Version | for pipe diameter 25-1200 mm | |
| Accuracy | ±1 % | |
| measurement range | ±0.03 to ±5 m/s | |
| Product type | flow meter | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 60 °C | |
| Degree of protection (IP) | IP65/IP68 |
Download
Logistics
| Customs tariff number | 90261021 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
