PCE-RCM 10 | PCE Instruments

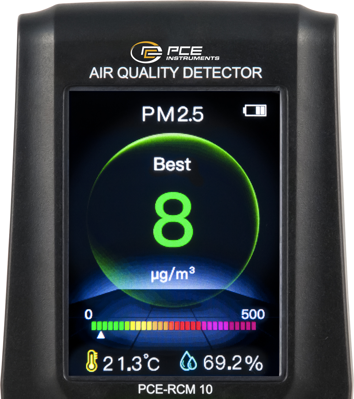

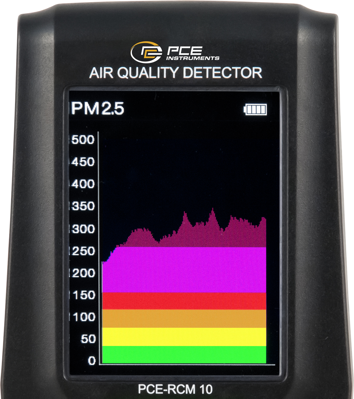

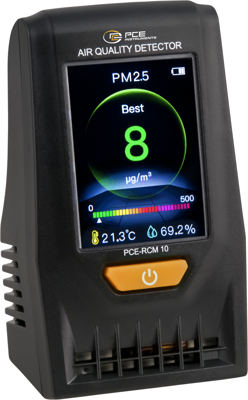

PCE Instruments air quality meter, PCE-RCM 10
Particle counter, PCE-RCM 10, PCE Instruments
PCE-RCM 10 is a portable handheld particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this particle counter also measures air temperature and relative humidity (RH). The particle counter can be powered either by the built-in rechargeable battery or the USB port. The USB port also is used to charge the battery. At full charge, the battery provides up to 5 hours of continuous operation or unlimited operation when plugged into a USB power source.
Since the PCERCM 10 particle counter monitors PM 2.5 and PM 10 particles, the device has many practical health and safety applications. Heating, ventilation and air conditioning (HVAC) technicians use PM 2.5 and PM 10 particle counters for HVAC system performance and filtration audits.
Features
- Particulate matter (PM) channels: PM 2.5, PM 10
- Humidity measuring range: 0 - 100 % RH
- 2.4" full-color LCD with user-friendly graphics
- 240 x 320 pixel display resolution
- Portable handheld design for indoor air quality (IAQ) monitoring in the field
- On the go
Scope of delivery
- 1 x air quality detector PCE-RCM 10
- 1 x USB cable
| Filter | Property | Value |
|---|---|---|
| Relative Humidity Range | 0 % to 100 % | |
| Product type | air quality meter | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 50 °C | |
| Accuracy | ±3.5 %, ±1 °C | |
| Version | 2.4 inch TFT color display | |
| measurement range | 0 to 2000 µm | |
| Resolution | 0.1 % |
| Property | Value |
|---|---|
| Customs tariff number | 90271010 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
