PCE-PDA 100L | PCE Instruments

PCE Instruments pressure gauge, PCE-PDA 100L

Order No.: 31K0081
EAN: 4250348717641
MPN:
PCE-PDA 100L

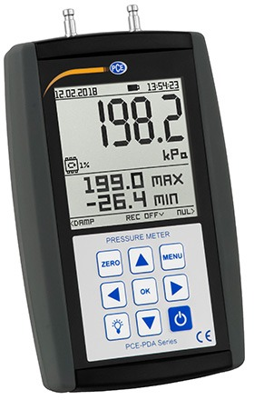

PCE-PDA 100L PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 1

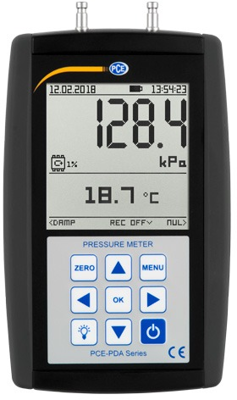

PCE-PDA 100L PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 2

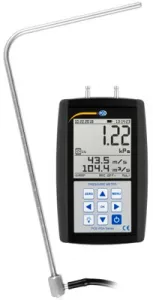

PCE-PDA 100L PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 3

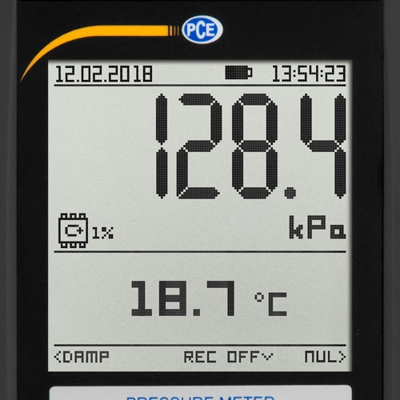

PCE-PDA 100L PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 4
Image may differ
Unit Price (€ / pc.)
783.6983 € *
Available in 4 Days: 17 pcs. - if ordered today
Total Price:
783.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
783.6983 €

Manometer, PCE-PDA 100L, PCE Instruments

The differential pressure gauges of the PCE-PDA 100L is reliable differential pressure gauges for pressure measurement of gases in the range of ± 200 kPa, ± 2 kPa and 20 kPa depending on the model. The differential pressure gauge has many different pressure measuring functions. This gives the user more than 16 units. Furthermore, the differential pressure gauge measures in addition to the differential pressure, the temperature, flow velocity and volume flow. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can optionally be switched. The differential pressure gauge incorporates a high-precision mode that increases the resolution tenfold.

Features

  • Graphic display with lighting
  • Min and Max value memory
  • Datalogger and leak test
  • Quick coupling connection
  • Temperature, flow measurement
  • High precision measuring mode
Technical specifications
max. operating temperature 50 °C
measurement range -100 to 200 kPa
Resolution 0.1 °C
Version with data logger
min. operating temperature 0 °C
Degree of protection (IP) IP41
Accuracy ±0.5 %
Product type pressure gauge
Logistics
Customs tariff number 90262020
Country of origin CZ
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
