PCE-DPG 10 | PCE Instruments

PCE Instruments pressure sensor, PCE-DPG 10

Order No.: 31K0089
EAN: 4250348721242
MPN:
PCE-DPG 10
PCE-DPG 10 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 1
PCE-DPG 10 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 2
PCE-DPG 10 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 3
PCE-DPG 10 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 4
PCE-DPG 10 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 5
Image may differ
Unit Price (€ / pc.)
368.7453 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
368.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
368.7453 €

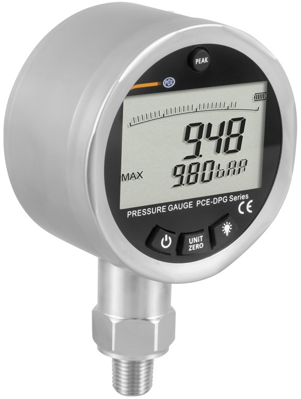

Manometer, PCE-DPG 10, PCE Instruments

The manometer of the PCE-DPG 10 is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this manometer is versatile. The current pressure is displayed by the manometer as a value and at the same time as a bar graph. As an additional function, the manometer offers a peak function. This function shows the operator the maximum and minimum pressure measured on the manometer at the push of a button.

Features

  • Measuring range up to 145 psi, 100 bar
  • Scaled bar graph
  • Large 2.5" display
  • Adjustable backlight
  • 1.4" NPT connection thread
Technical specifications
Version 2.5 inch LCD with illumination
Product type pressure sensor
Degree of protection (IP) IP56
Resolution 0.01 bar
Accuracy 0.25 %
measurement range 0 to 10 bar
max. operating temperature 60 °C
min. operating temperature -10 °C
Logistics
Customs tariff number 90262020
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
