GE128-C | Panduit
Edge protection profile, serrated edge, (W x H) 5.6 x 3.9 mm, PA, natural, GE128-C
Order No.: 12H3552
EAN: 0074983601349
MPN:
GE128-C
07498360134
Unit Price (€ / pc.)
1.7136 € *
Available: 557 pcs.
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5946 €
50 pcs.
1.4637 €
100 pcs.
1.3447 €
1000 pcs.
1.1781 €
*incl. VAT plus shipping costs
Subject to prior sale
Edge protection profiles, type Panduit GE.
Protects cables and leads at panel openings and punched-out holes with sharp edges in a chassis or housing. Made of PA 6.6, plain-colored, self-extinguishing compliant with UL 94 V-2, with high abrasion resistance; Operating temperatures: –40 to +65 °C. Unit of measure: 32.4-cm section lengths.

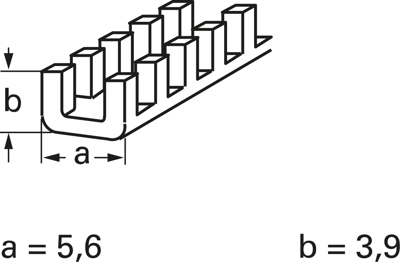

Technical attributes (type, wall thickness (W), dimension a (width), b (height)): GE128–C, W 2.2 to 3.3, a 5.6, b 3.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| max. operating temperature | 65 °C | |
| Height | 3.9 mm | |
| Width | 5.6 mm | |
| min. operating temperature | -40 °C | |
| Colour | natural | |
| Version | serrated edge |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
