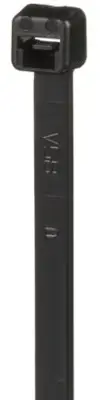

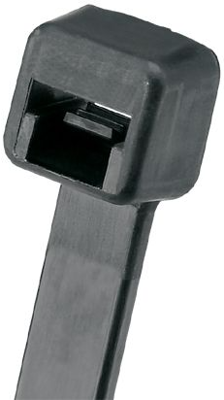

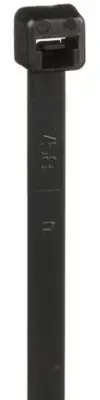

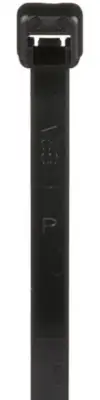

PLT8LH-C6120 | Panduit
Cable tie, PA, (L x W) 701 x 7.6 mm, bundle-Ø 4.8 to 203 mm, black, UV resistant, -60 to 90 °C, PLT8LH-C6120
Unit Price (€ / pc.)
1.2138 € *
Available: 195 pcs.
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2138 €
50 pcs.
1.1067 €
100 pcs.
0.9996 €
500 pcs.
0.9282 €
1000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable tie, PLT8LH-C6120, Panduit
The PLT8LH-C6120 is a locking cable tie designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 701 mm length.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| max. operating temperature | 90 °C | |
| Length | 701 mm | |
| Product type | cable tie | |
| Min holding force | 534 N | |
| Width | 7.6 mm | |
| min. operating temperature | -60 °C | |
| min. Bundle diameter | 4.8 mm | |
| Chemical resistant | Yes | |
| Thickness | 1.9 mm | |
| max. Bundle diameter | 203 mm | |
| detachable closure | No | |
| Halogen free | Yes | |
| Colour | black | |
| UV-resistant | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
