PLT4S-M76 | Panduit

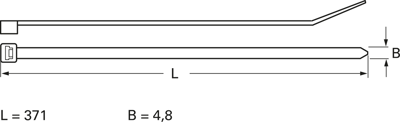

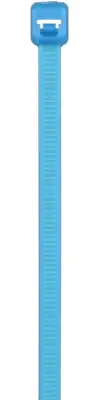

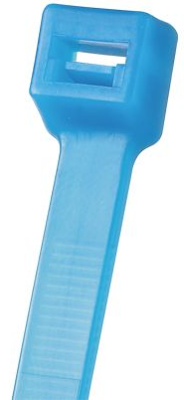

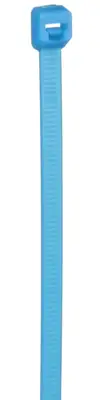

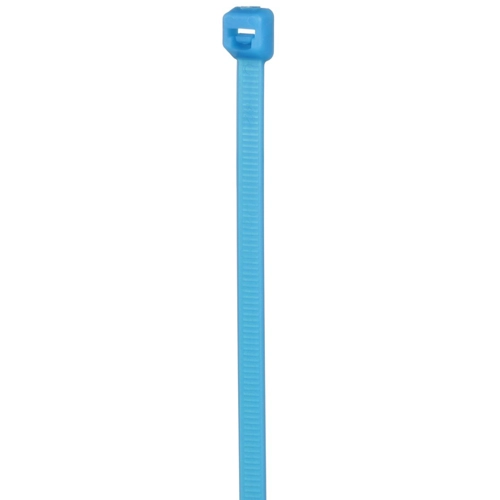

Cable tie, fluoropolymer, (L x W) 371 x 4.8 mm, bundle-Ø 3.3 to 102 mm, aquamarine, UV resistant, -60 to 170 °C, PLT4S-M76
Unit Price (€ / pc.)
2.9869 € *
Standard delivery time from the manufacturer is: 10 Weeks
Cable ties for increased requirements, PLT4S-M76, PANDUIT
This locking cable tie is designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants.
Features
- Low smoke density and excellent flammability rating
- One-piece construction for consistent performance and reliability
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Version | for increased requirements | |
| Length | 371 mm | |
| Width | 4.8 mm | |
| Thickness | 1.5 mm | |
| min. Bundle diameter | 3.3 mm | |
| max. Bundle diameter | 102 mm | |
| Min holding force | 222 N | |
| Material | fluoropolymer | |
| Colour | aquamarine | |
| Chemical resistant | Yes | |
| UV-resistant | Yes | |
| Halogen free | No | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
