PLT4S-M6120 | Panduit

Cable tie, PA, (L x W) 368 x 4.8 mm, bundle-Ø 1.5 to 102 mm, black, UV resistant, -60 to 90 °C, PLT4S-M6120

Order No.: 12H9941
MPN:
PLT4S-M6120
61305684579
Series: Pan-Ty

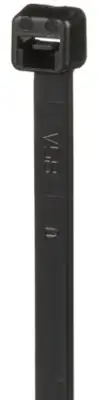

PLT4S-M6120 Panduit Cable Ties Image 1

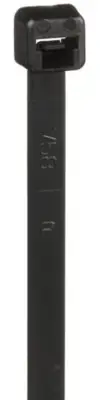

PLT4S-M6120 Panduit Cable Ties Image 2

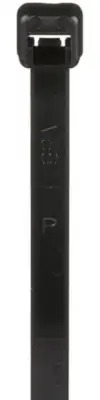

PLT4S-M6120 Panduit Cable Ties Image 3

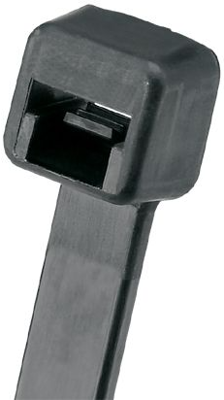

PLT4S-M6120 Panduit Cable Ties Image 4
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
309.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.3094 €

Cable tie, PLT4S-M6120, Panduit

The PLT4S-M6120 is a locking cable tie designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Cable tie of choice for making attachments to galvanized surfaces. Standard cross section, 368 mm length.

Technical specifications
Length 368 mm
min. Bundle diameter 1.5 mm
Colour black
Thickness 1.3 mm
detachable closure No
Width 4.8 mm
min. operating temperature -60 °C
max. operating temperature 90 °C
max. Bundle diameter 102 mm
Material PA
Min holding force 222 N
Halogen free Yes
UV-resistant Yes
Chemical resistant Yes
Logistics
Customs tariff number 39269097
Original Packaging Bag with 1,000 pieces
Compliance
SVHC free Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
