PLT4S-M30 | Panduit

Cable tie, releasable, PA, (L x W) 368 x 4.8 mm, bundle-Ø 1.5 to 102 mm, black, -60 to 115 °C, PLT4S-M30

Order No.: 13H1803
EAN: 4099891203283
MPN:
PLT4S-M30
07498356621
Series: Pan-Ty

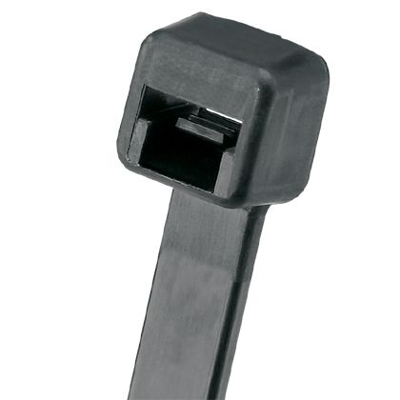

PLT4S-M30 Panduit Cable Ties Image 1

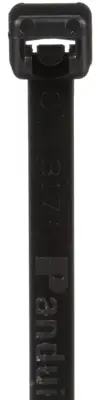

PLT4S-M30 Panduit Cable Ties Image 2

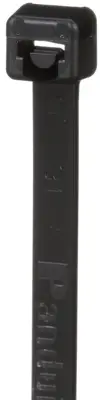

PLT4S-M30 Panduit Cable Ties Image 3

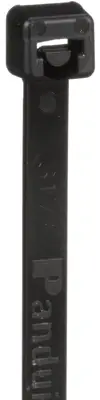

PLT4S-M30 Panduit Cable Ties Image 4
Image may differ
Unit Price (€ / pc.)
0.2963 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.59 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2963 €
10 pcs.
0.2618 €
50 pcs.
0.2225 €
100 pcs.
0.1821 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tie, PLT4S-M30, PANDUIT

The PLT4S-M30 Locking cable tie is designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading, made of heat stabilized Nylon 6.6.

Technical specifications
Filter Property Value
Width 4.8 mm
min. operating temperature -60 °C
Min holding force 222 N
min. Bundle diameter 1.5 mm
detachable closure Yes
Thickness 1.3 mm
Product type cable tie
Material PA
UV-resistant No
Length 368 mm
Colour black
max. operating temperature 115 °C
max. Bundle diameter 102 mm
Halogen free Yes
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
