PLT4H-TL30 | Panduit
Cable tie, releasable, PA, (L x W) 368 x 7.6 mm, bundle-Ø 4.8 to 102 mm, black, -60 to 115 °C, PLT4H-TL30
Unit Price (€ / pc.)
0.4046 € *
Available: 260 pcs.
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
500 pcs.
0.2785 €
1000 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale

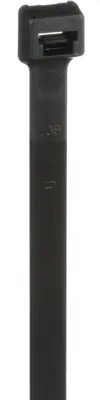

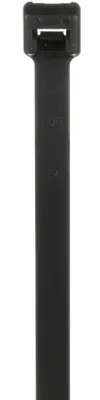

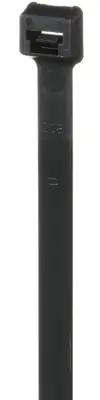

Cable tie, PLT4H-TL30, PANDUIT

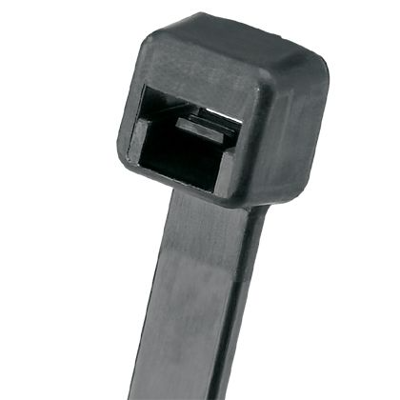

The PLT4H-TL30 Locking cable tie is designed to satisfy the needs of general application, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading, made of heat stabilized Nylon 6.6.
Features
- For high temperature applications up to 115°C
- One-piece construction for consistent performance and reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| max. operating temperature | 115 °C | |
| Length | 368 mm | |
| Product type | cable tie | |
| Min holding force | 534 N | |
| Width | 7.6 mm | |
| min. operating temperature | -60 °C | |
| min. Bundle diameter | 4.8 mm | |
| Thickness | 1.9 mm | |
| max. Bundle diameter | 102 mm | |
| detachable closure | Yes | |
| Halogen free | Yes | |
| Colour | black | |
| UV-resistant | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
