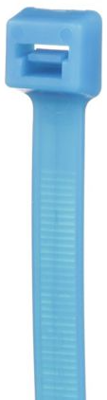

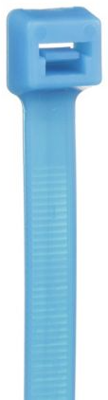

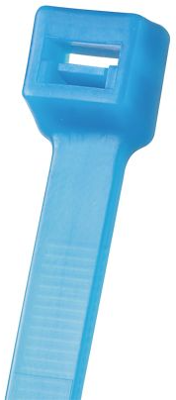

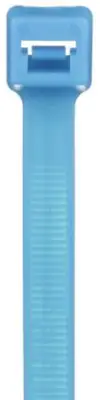

PLT4H-L76 | Panduit
Cable tie, releasable, ETFE, (L x W) 371 x 7.6 mm, bundle-Ø 6.4 to 102 mm, aquamarine, UV resistant, -60 to 170 °C, PLT4H-L76
Unit Price (€ / pc.)
4.641 € *
Available: 50 pcs.
Locking cable tie, PLT4H-L76, Panduit
The PLT4H-L76 Locking cable tie is designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. This product is suitable for indoor or outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Length | 371 mm | |
| Width | 7.6 mm | |
| Thickness | 1.9 mm | |
| min. Bundle diameter | 6.4 mm | |
| max. Bundle diameter | 102 mm | |
| Min holding force | 534 N | |
| Material | ETFE | |
| Colour | aquamarine | |
| detachable closure | Yes | |
| Chemical resistant | Yes | |
| UV-resistant | Yes | |
| Halogen free | No | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
