PLT2S-M702Y | Panduit
Cable tie, fluoropolymer, (L x W) 188 x 4.8 mm, bundle-Ø 1.5 to 48 mm, brown, UV resistant, -60 to 125 °C, PLT2S-M702Y
Unit Price (€ / pc.)
0.7259 € *
Available: 269 pcs.

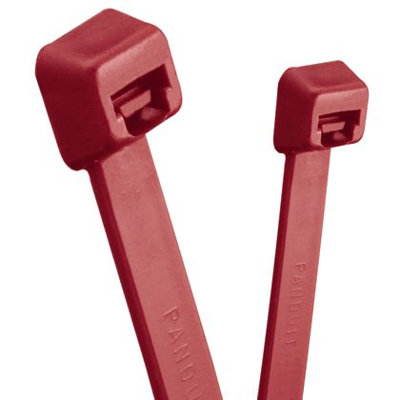

Cable ties for demanding applications, made of Halar, type Panduit PLT.
High tensile strength and flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Version | for increased requirements | |

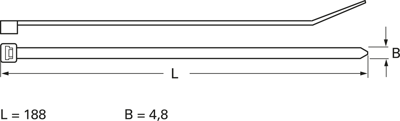

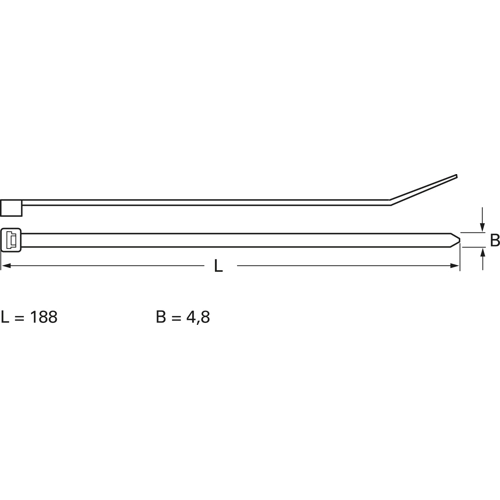

| Length | 188 mm | |
| Width | 4.8 mm | |
| Thickness | 1.4 mm | |
| min. Bundle diameter | 1.5 mm | |
| max. Bundle diameter | 48 mm | |
| Min holding force | 222 N | |
| Material | fluoropolymer | |
| Colour | brown | |
| Chemical resistant | Yes | |
| UV-resistant | Yes | |
| Halogen free | No | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
