PLT2S-C4Y | Panduit

Cable tie, releasable, PA, (L x W) 188 x 4.8 mm, bundle-Ø 1.5 to 47.8 mm, yellow, -60 to 85 °C, PLT2S-C4Y

Order No.: 13H1761
EAN: 4099891202866
MPN:
PLT2S-C4Y
07498344416
Series: Pan-Ty

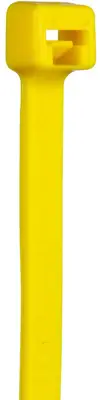

PLT2S-C4Y Panduit Cable Ties Image 1

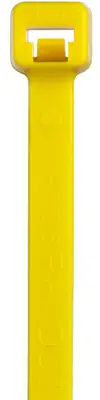

PLT2S-C4Y Panduit Cable Ties Image 2

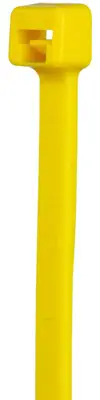

PLT2S-C4Y Panduit Cable Ties Image 3

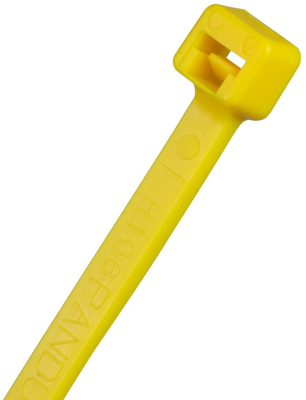

PLT2S-C4Y Panduit Cable Ties Image 4
Image may differ
Unit Price (€ / pc.)
0.1547 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1547 €
10 pcs.
0.1369 €
50 pcs.
0.1154 €
100 pcs.
0.0952 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tie, PLT2S-C4Y, PANDUIT

The PLT2S-C4Y Locking cable tie is designed to satisfy the needs of military specification applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading, made of Nylon 6.6.

Technical specifications
Filter Property Value
detachable closure Yes
max. Bundle diameter 47.8 mm
UV-resistant No
max. operating temperature 85 °C
Length 188 mm
min. operating temperature -60 °C
Colour yellow
Halogen free Yes
Min holding force 222 N
Thickness 1.3 mm
Material PA
Width 4.8 mm
min. Bundle diameter 1.5 mm
Product type cable tie
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
