HV9150-C0 | Panduit
Cable tie, releasable, PA, (L x W) 525 x 8.9 mm, bundle-Ø 10 to 150 mm, black, UV resistant, -60 to 85 °C, HV9150-C0
Unit Price (€ / pc.)
0.9401 € *
Available: 151 pcs.
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
100 pcs.
0.8092 €
500 pcs.
0.7497 €
1000 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

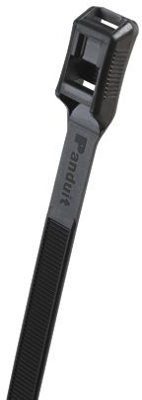

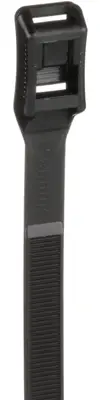

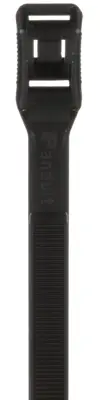

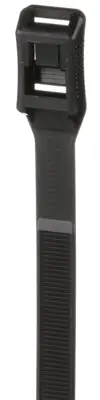

Cable tie, HV9150-C0, Panduit
Panduit HV9150-C0 In-Line cable tie has a perfect balance of strong and flexible. This is flexible enough to conform to irregular bundles, while double-sided teeth and a two-wedge locking design add extra locking strength with low threading force.
Features
- Bending serrations on the tip of the tie allow the tip to be easily formed into an arc
- In-Line tie design for parallel-entry of the tie into head resulting in a lower profile on cable bundles
- Releasable head position for temporary bundling of cables
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 85 °C | |
| Material | PA | |
| detachable closure | Yes | |
| UV-resistant | Yes | |
| Thickness | 1.9 mm | |
| max. Bundle diameter | 150 mm | |
| Min holding force | 710 N | |
| Width | 8.9 mm | |
| Chemical resistant | No | |
| Length | 525 mm | |
| min. Bundle diameter | 10 mm | |
| Product type | cable tie |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
