PMCC38H25-C | Panduit

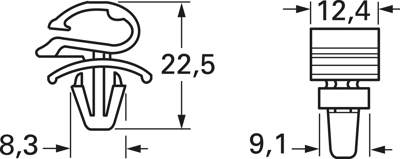

Mounting base, max. bundle Ø 9.6 mm, PA, natural, (L x W x H) 12.7 x 12.7 x 22.48 mm, PMCC38H25-C
Order No.: 12H8220
EAN: 0074983589470
MPN:
PMCC38H25-C
07498358947
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: On Request
Cable clips, type Panduit PMCC.
Highly vibration resistant push barb mount cord clip for absolutely safe seating; Material: PA 6.6, plain-colored. Harness diameter: maximum 9.6 mm. Mounting hole: 6.4 mm. Panel thickness: maximum 2.7 mm.
Type: PMCC38H25-C, cable clip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Self-adhesive | No | |
| Length | 12.7 mm | |
| Product type | mounting base | |
| Height | 22.48 mm | |
| Width | 12.7 mm | |
| max. Bundle diameter | 9.6 mm | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
