MACC62-A-C | Panduit
Mounting base, max. bundle Ø 15.7 mm, steel, silver, self-adhesive, (L x W x H) 30 x 19.7 x 19 mm, MACC62-A-C
Order No.: 12H8132
EAN: 0074983585038
MPN:
MACC62-A-C
07498358503
Unit Price (€ / pc.)
1.1067 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,106.70 € *
Price list
Quantity
Price per unit*
1000 pcs.
1.1067 €
5000 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale

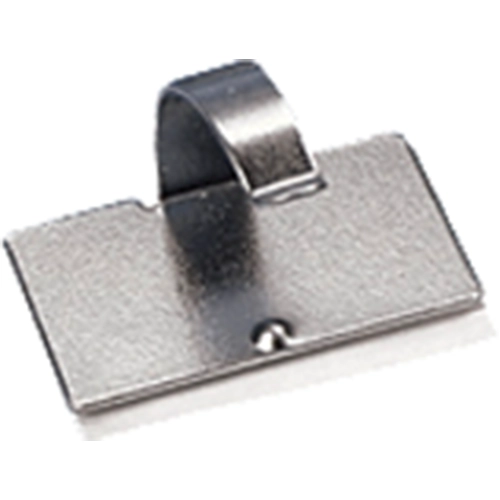

Cable clips, type Panduit MACC.
Self-adhesive soft metal clip. Relatively easy deforming clip material for quick lock and release and force-free adaptation to the cable probe design.

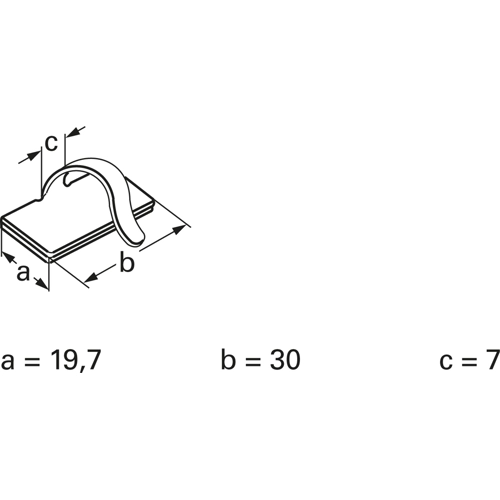

Technical attributes (type, maximum harness diameter (D), dimensions): MACC62–A–C, D 15.7, a 19.7, b 30, c 7.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | steel | |
| Self-adhesive | Yes | |
| Length | 30 mm | |
| Product type | mounting base | |
| Height | 19 mm | |
| Width | 19.7 mm | |
| max. Bundle diameter | 15.7 mm | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
