MACC25-A-C | Panduit
Mounting base, max. bundle Ø 6.4 mm, steel, silver, self-adhesive, (L x W x H) 19.56 x 13.7 x 10.2 mm, MACC25-A-C
Order No.: 12H8130
EAN: 0074983584987
MPN:
MACC25-A-C
07498358498
Unit Price (€ / pc.)
1.2614 € *
Available: 940 pcs.
Total Price:
12.61 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2614 €
100 pcs.
1.1067 €
500 pcs.
0.9639 €
1000 pcs.
0.8449 €
5000 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

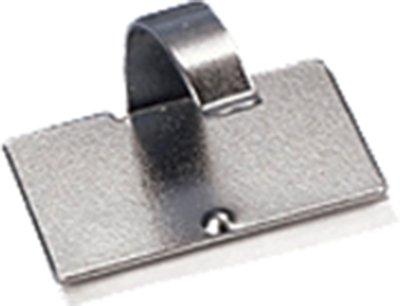

Cable clips, type Panduit MACC.
Self-adhesive soft metal clip. Relatively easy deforming clip material for quick lock and release and force-free adaptation to the cable probe design.

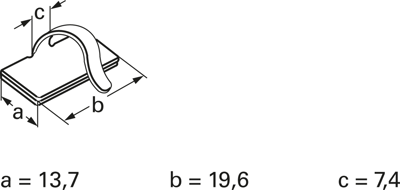

Technical attributes (type, maximum harness diameter (D), dimensions): MACC25–A–C, D 6.3, a 13.7, b 19.6, c 7.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 10.2 mm | |
| Colour | silver | |
| Self-adhesive | Yes | |
| Material | steel | |
| max. Bundle diameter | 6.4 mm | |
| Width | 13.7 mm | |
| Length | 19.56 mm | |
| Product type | mounting base |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
