HWS2819-C | Panduit
Mounting base, max. bundle Ø 4.8 mm, PA, natural, (L x H) 11.18 x 19.1 mm, HWS2819-C
Order No.: 12H8222
EAN: 0074983986569
MPN:
HWS2819-C
07498398656
Unit Price (€ / pc.)
0.2094 € *
Next delivery: 100 pcs. on 2025-08-05
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2094 €
50 pcs.
0.1809 €
100 pcs.
0.1618 €
500 pcs.
0.1404 €
1000 pcs.
0.1261 €
*incl. VAT plus shipping costs
Subject to prior sale

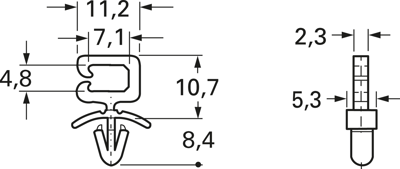

Wire saddles, type Panduit HWS.
Push barb mount. The cable is simply pressed in; Material: PA 6.6, plain-colored. Harness diameter: maximum 4.8 mm. Mounting hole: 4.7 to 4.9 mm. Panel thickness: 0.8 to 2.0 mm.
Type: HWS2819-C, wire saddle
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 4.8 mm | |
| Self-adhesive | No | |
| Material | PA | |
| Length | 11.18 mm | |
| Product type | mounting base | |
| Colour | natural | |
| Height | 19.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
