CCSSTR2025-X | Panduit
Cable clamp, max. bundle Ø 25 mm, stainless steel, metal, (L x W x H) 86 x 63 x 87 mm, CCSSTR2025-X
Order No.: 13H2120
EAN: 4099891753542
MPN:
CCSSTR2025-X
61305662470
Unit Price (€ / pc.)
60.9280 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
60.93 € *
Price list
Quantity
Price per unit*
1 pcs.
60.9280 €
5 pcs.
59.1073 €
10 pcs.
56.1442 €
25 pcs.
53.3358 €
*incl. VAT plus shipping costs
Subject to prior sale

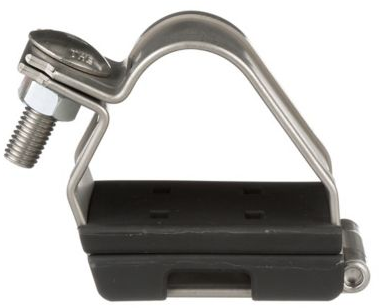

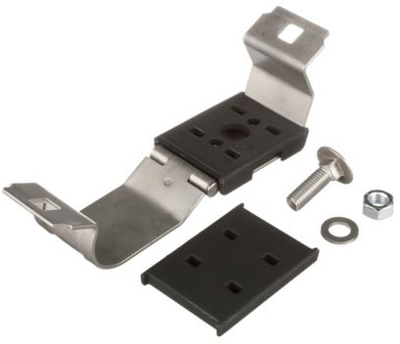

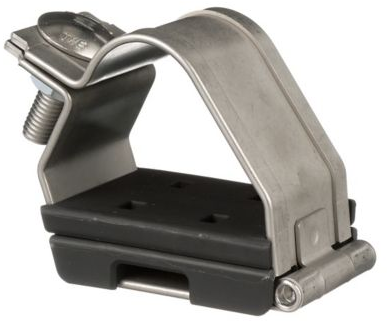

Cable Cleat, CCSSTR2025-X, Panduit
The Stainless Steel Trefoil Cable Cleat offers protection against extreme environments and high short circuit current faults. It is made of 316L stainless steel, and suitable for trefoil cable arrangements. The cleat can be installed after running cable using a mounting bracket or before running cable by installing direct to the cable tray rung through a fixing hole using an M8 bolt.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 87 mm | |
| Colour | metal | |
| Self-adhesive | No | |
| Material | stainless steel | |
| max. Bundle diameter | 25 mm | |
| Width | 63 mm | |
| Length | 86 mm | |
| Product type | cable clamp |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
