CCALTR5561-X | Panduit
Cable clamp, max. bundle Ø 61 mm, aluminum, metal, (L x W x H) 145 x 55 x 167 mm, CCALTR5561-X
Order No.: 13H2173
EAN: 4099891754075
MPN:
CCALTR5561-X
61305675545
Unit Price (€ / pc.)
41.5786 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
41.58 € *
Price list
Quantity
Price per unit*
1 pcs.
41.5786 €
10 pcs.
39.0915 €
25 pcs.
36.3545 €
50 pcs.
33.4509 €
*incl. VAT plus shipping costs
Subject to prior sale

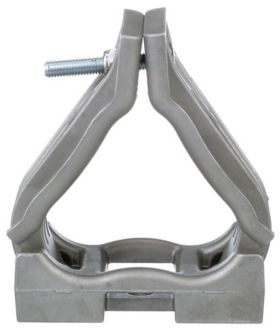

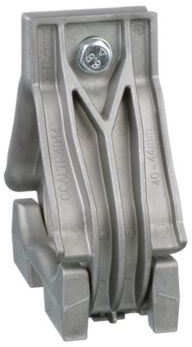

Cable Cleat, CCALTR5561-X, Panduit
The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Self-adhesive | No | |
| Length | 145 mm | |
| Product type | cable clamp | |
| Height | 167 mm | |
| Width | 55 mm | |
| max. Bundle diameter | 61 mm | |
| Colour | metal |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
