CCALTR2326-X | Panduit

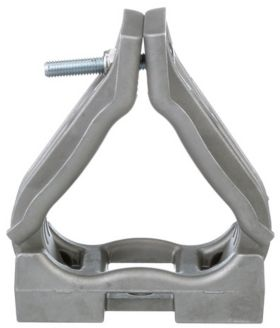

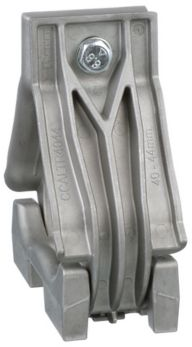

Cable clamp, max. bundle Ø 26 mm, aluminum, metal, (L x W x H) 101 x 55 x 100 mm, CCALTR2326-X
Order No.: 13H2162
EAN: 4099891753962
MPN:
CCALTR2326-X
61305675534
Unit Price (€ / pc.)
27.0725 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.07 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0725 €
10 pcs.
24.9067 €
25 pcs.
22.9194 €
50 pcs.
20.8607 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable Cleat, CCALTR2326-X, Panduit
The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| max. Bundle diameter | 26 mm | |
| Self-adhesive | No | |
| Width | 55 mm | |
| Height | 100 mm | |
| Length | 101 mm | |
| Product type | cable clamp | |
| Material | aluminum |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
