PAN SOCKET-TEST-2 | PANCONTROL

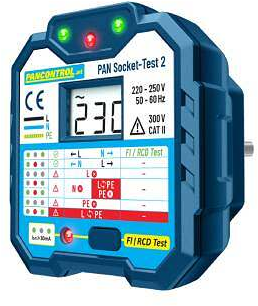

Socket tester, CAT II 300 V, PANCONTROL PAN SOCKET-TEST-2
Socket tester, PAN SOCKET-TEST-2, PANCONTROL

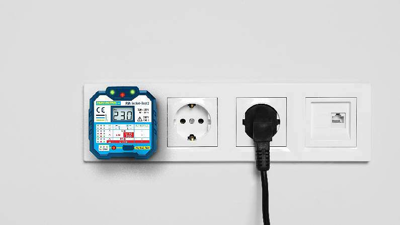

The PAN Socket-Test 2 is a compact socket tester for quickly and safely testing Schuko sockets in professional applications. The device detects typical wiring errors such as missing wires or reversed connections and displays the status via clearly visible green and red LEDs. An integrated test button allows for the direct activation of a 30 mA residual current device (RCD) to reliably test its functionality. This allows for a quick and easy determination of whether the RCD is tripping properly - an important safety aspect during initial testing or maintenance. The PAN Socket-Test 2 requires no batteries and draws its power directly from the circuit being tested. Its compact design, simple operation, and clear LED display make the device particularly user-friendly—ideal for installers, service technicians, and testing organizations.
Features
- Testing of power outlets

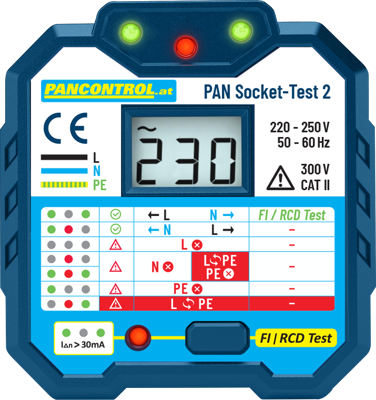

- Green and red LEDs indicate whether the outlet is properly wired
- The device does not recognize if the neutral wire and earth wire are reversed
- No battery required
| Filter | Property | Value |
|---|---|---|
| Product type | socket tester | |
| Max measured value AC voltage | 250 V | |
| Surge voltage category | CAT II 300 V |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90308900 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
