PAN INFRAVISION | PANCONTROL
Infrared thermometer & camera12:1 with laser indication of measuring circle

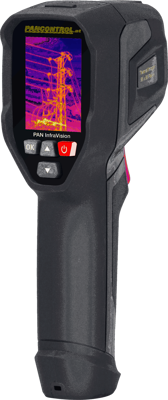

Infrared thermal imaging camera, PAN INFRAVISION, PANCONTROL
The PAN Infravision is a compact infrared thermal imaging camera for professional applications in maintenance, building services, and electrical installations. It enables non-contact temperature measurements in the range from -20 °C to +550 °C and displays temperature differences directly on the integrated color display. With an IR resolution of 96 × 96 pixels and an optical resolution of 240 × 320 pixels, the device offers precise visualization of thermal anomalies—ideal for locating thermal bridges, electrical overloads, or leaks.
The minimum/maximum temperature display and the data hold function support rapid on-site evaluation. Thanks to its IP54 protection rating, the camera is splash-proof and suitable for use in demanding environments. Operation is intuitive, and it can also be connected to an app for Android and iOS - for easy analysis and documentation on a smartphone or tablet. Features include an automatic shut-off function, an integrated Li-Ion battery with a long runtime and a carrying case.
Features
- IP 54 waterproof
- IR resolution 96 x 96 px
- Data-Hold
- Auto power off
- Min / Max memory
- Android & iOS app
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90251900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
