PAN MULTISTIFT | PANCONTROL
Digital multimeter PAN MULTISTIFT, 600 VDC, 600 VAC, CAT III 600 V
Pen multimeter, PAN MULTISTIFT*, PANCONTROL

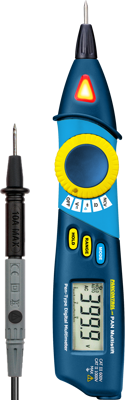

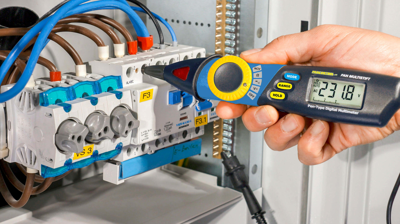

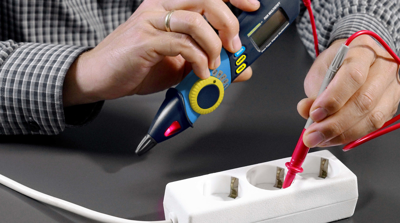

The PAN Multi-Pen is a versatile pen-type multimeter specifically designed for mobile use in electrical installations. Thanks to its slim design and practical pen shape, it's ideal for quick measurements in hard-to-reach places. The device covers a wide range of measurement functions, including DC and AC voltages, resistance, and continuity tests. The digital display with 3,999 counters presents measurement results precisely and clearly, while automatic and manual range selection allows for flexible use. An integrated single-pole phase test with an audible alarm simplifies the quick detection of live wires.

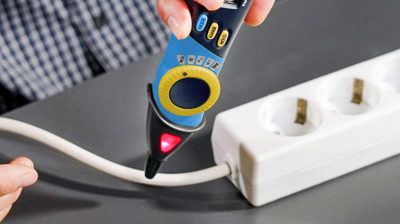

The non-contact voltage detector (NCV) reliably detects alternating voltages and indicates the voltage intensity via an LED display - ideal for quick preliminary tests without direct contact. The robust design and intuitive operation make the PAN Multi-Pen a reliable companion for installers, electricians, and technical specialists. Additional features such as the data hold function, diode test, and automatic shutdown ensure convenient and efficient handling.
Features
- Non contact voltage test (NCV)
- Single-pole phase testing with acoustic alarm
- Automatic and manual range selection
- Data-Hold
- Diode test
- Auto power off
| Filter | Property | Value |
|---|---|---|
| Version | pen multimeter | |
| TRMS possible | No | |
| Surge voltage category | CAT III 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| max. resistance range | 40 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| Display Digits | 3999 |
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
