PAN MULTISTIFT-2 | PANCONTROL
TRMS digital multimeter PAN MULTISTIFT-2, 600 VDC, 600 VAC, 0.01 nF to 4 mF, CAT III 600 V

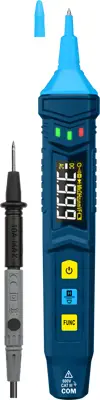

Pen-type multimeter, PAN MULTISTIFT-2, PANCONTROL

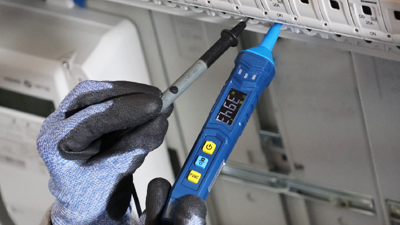

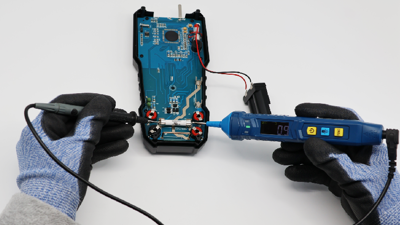

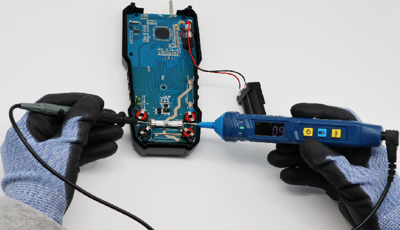

The PAN Multipen-2 is a compact pen-type multimeter for professional use in electrical installations. Equipped with True RMS technology, the device is ideal for precise measurements of DC and AC voltages up to 600 V, as well as for resistance, frequency, and capacitance measurements. Thanks to automatic range selection and a clear digital display with 3,999 counters, the multi-pen offers easy and safe handling. The backlit color LCD ensures easy readability - even in poor lighting conditions.
An integrated single-pole phase test with an acoustic alarm supports the rapid detection of live wires. Additional functions such as a diode test, acoustic continuity test, data hold function, and automatic shutdown make the device particularly versatile for everyday use. High-quality test cables and detailed operating instructions are included.
Features
- Auto power off
- Illuminated digital display 3999
- Single-pole phase testing with acoustic alarm
- Data-Hold
- True RMS measurement
- LED flashlight
- Auto range
- Diode test
| Filter | Property | Value |
|---|---|---|
| TRMS possible | Yes | |
| max. voltage measuring range (DC) | 600 V | |
| Version | pen multimeter | |
| Display Digits | 3999 | |
| Surge voltage category | CAT III 600 V | |
| Capacity range | 0.01 nF to 4 mF | |
| max. resistance range | 40 MΩ | |
| max. voltage measuring range (AC) | 600 V |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
