PAN 124 | PANCONTROL
AC current clamp PAN 124, 400 A (AC), 600 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V
Order No.: 36K0030
EAN: 9120037331241
MPN:
PAN 124
Unit Price (€ / pc.)
52.241 € *
Standard delivery time from the manufacturer is: 1 Week

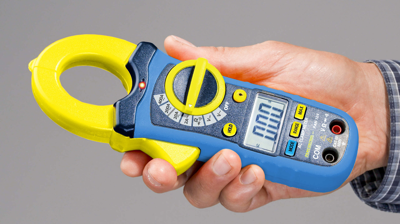

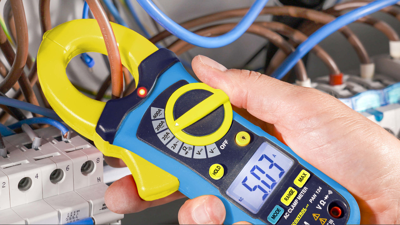

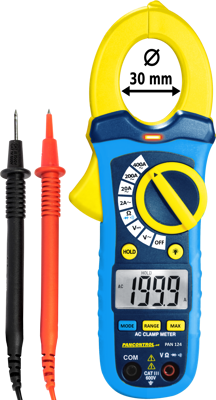

Digital current clamp, PAN 124, PANCONTROL
The PAN 124 is a compact current clamp for precise measurements of alternating current up to 400 A. It combines reliable measurement technology with practical additional functions such as a non-contact voltage tester (NCV), a single-pole phase tester, a diode test, and an acoustic continuity test. Automatic range selection, the data hold function, and the backlight ensure convenient handling in everyday work. The device is ideal for electrical installers and service technicians who need a compact and reliable solution for current and voltage measurements.
Features
- Digital display 11 mm
- Backlight
- Non contact voltage test (NCV)
- Single-pole phase tester
- Data-Hold
- Diode test
- Auto power off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pliers opening | 30 mm | |
| TRMS possible | No | |
| Surge voltage category | CAT III 600 V | |
| Product type | AC current clamp | |
| max. voltage measuring range (DC) | 600 V | |
| max. resistance range | 20 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. measured current value (AC) | 400 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
