PAN 100AD+ | PANCONTROL
Clamp multimeter PAN 100AD+, 100 A (DC), 100 A (AC), 600 V (DC), 600 V (AC), opening 12 mm, CAT III 600 V
NCNR (non cancelable / non returnable)

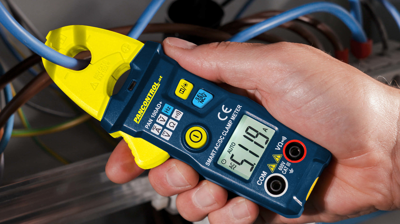

Intelligent current clamp, PAN 100AD+, PANCONTROL

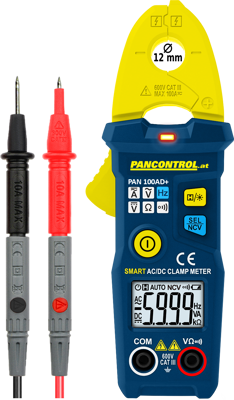

The PAN 100AD+ is a compact, intelligent current clamp for precise measurements up to 100 A (AC/DC). The device automatically detects the measuring range and measurement type—ideal for professionals in electrical trades and maintenance. Thanks to the non-contact voltage tester (NCV), 1-pole phase test with acoustic alarm and True RMS function for precise AC current measurement, the current clamp is suitable for both standard measurements and more complex applications in the low-voltage range. Automatic range selection, data hold function, backlight, and automatic shutdown ensure comfortable and safe work. With a clamp opening of just 12 mm, the PAN 100AD+ is particularly suitable for tight spaces. Included are test cables, a practical carrying case and detailed operating instructions.
Features
- Digital display 13 mm
- Backlight

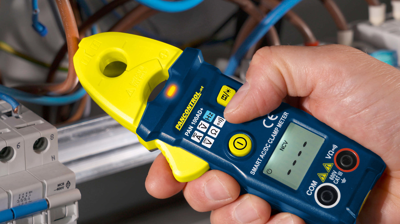

- Non contact voltage test (NCV)
- Single-pole phase testing with acoustic alarm
- Auto range
- Data-Hold
- Auto power off
| Filter | Property | Value |
|---|---|---|
| Product type | clamp multimeter | |
| TRMS possible | No | |
| Pliers opening | 12 mm | |
| Surge voltage category | CAT III 600 V | |
| max. measured current value (DC) | 100 A | |
| max. measured current value (AC) | 100 A | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| max. resistance range | 6 kΩ | |
| min. Measured value (frequency) | 40 Hz | |
| max. measured value (frequency) | 1 kHz |
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
