AV404461 | Panasonic

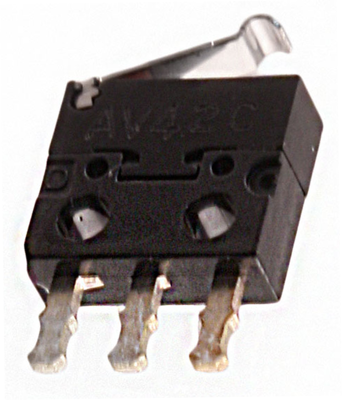

Ultraminiature snap-action switche, On-On, solder connection, roller hinge lever, 0.29 N, 0.1 A/30 VDC, IP40, AV404461
Discontinued
Unit Price (€ / pc.)
3.8199 € *
Available: 390 pcs.
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8199 €
10 pcs.
3.3558 €
100 pcs.
2.9512 €
250 pcs.
2.8322 €
1000 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale
Superminiature snap-action switches, type Panasonic AV4.
With solder terminals; Contact type: CO, gold-plated. Switching voltage: 30 VDC. Switching current range: 0.2 mA to 0.1 A. Useful life: mechanical/electrical 300000/200000 cycles. Degree of protection: IP 40.
With simulated roll actuator, type AV4.
Technical attributes (type, actuating force): AV404461, 0.29 N
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching point | 6.7 mm ±0.5 mm | |
| Breaking capacity | 0.1 A/30 VDC | |
| Connection | solder connection | |
| Latching switching function | On-On | |
| Design | straight | |
| actuating force | 0.29 N | |
| Protection class | IP40 | |
| Actuator | roller hinge lever |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
