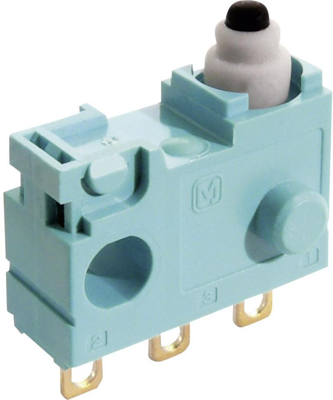

ASQ10410J | Panasonic
Ultraminiature snap-action switche, On-On, solder connection, pin plunger, 1.5 N, 0.1 A/30 VDC, IP67, ASQ10410J
Unit Price (€ / pc.)
3.3796 € *
Available: 83 pcs.
Leadtime: 15 Weeks **
Total Price:
3.38 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3796 €
10 pcs.
2.9631 €
100 pcs.
2.6061 €
250 pcs.
2.5109 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale
Superminiature snap-action switches, type Panasonic ASQ.
With contact force independent of actuating travel, for noiseless switching, long overtravel 2.5 mm; Contact type: CO. Actuator: plunger. Switching voltage: 30 VDC. Switching current range: 1.0 mA to 100 mA. Useful life: mechanical/electrical 1 million/500000 cycles. Operating temperatures: –40 to +85 °C. Degree of protection: IP 67.
With solder terminals, type ASQ.
Technical attributes (type, actuating force): ASQ10410, 1.5 N
Technical specifications
| Actuator | pin plunger | |
| Breaking capacity | 0.1 A/30 VDC | |
| Switching point | 8.4 mm ±0.3 mm | |
| Design | straight | |
| Connection | solder connection | |
| Protection class | IP67 | |
| Latching switching function | On-On | |
| actuating force | 1.5 N |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
