AH18809-A | Panasonic

Ultraminiature snap-action switche, On-On, PCB connection, pin plunger, 0.74 N, 1 A/125 VAC, 30 VDC, IP40, AH18809-A

Order No.: 34G4996
EAN: 4099889217513
MPN:
AH18809-A
Series: AH1

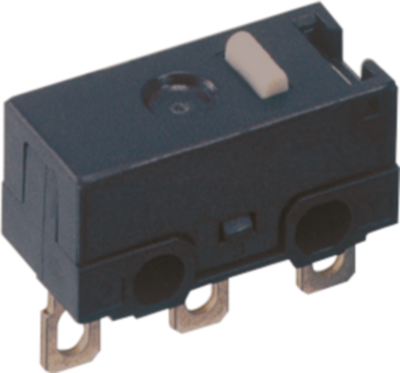

AH18809-A Panasonic Snap Action Switches
Image may differ
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
2,380.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.19 €

Ultraminiature-Switch, AH18809-A, PANASONIC

Ultraminiature-Switch, IP40, 2.0 mm mounting holes, PCB left angle, 0,74 N with stand off, Pin plunger, UL/CSA.

Features

  • Compact size, light weight and high precision
  • Switches that can be used with M2 general-purpose screws
  • Self-standing terminal easily mounted on PC boars

Applications

  • Computer mouse
  • Charger unit for portable terminal
  • Electric pot
Technical specifications
Filter Property Value
Switching point 5.5 mm ±0.2 mm
Latching switching function On-On
Protection class IP40
actuating force 0.74 N
Design angled
Connection PCB connection
Actuator pin plunger
Breaking capacity 1 A/125 VAC, 30 VDC
Logistics
Property Value
Customs tariff number 85365080
Country of origin TH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
