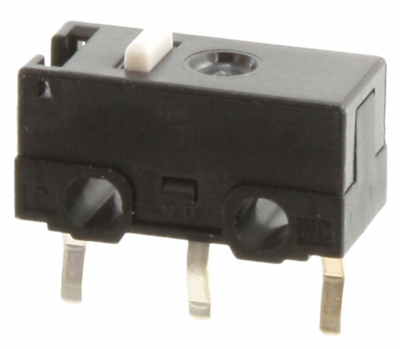

AH14609AT | Panasonic
Ultraminiature snap-action switche, On-On, PCB connection, pin plunger, 1.47 N, 3 A/125 VAC, 2 A/30 VDC, IP40, AH14609AT
Unit Price (€ / pc.)
1.071 € *
Standard delivery time from the manufacturer is: 10 Weeks
Superminiature snap-action switches, type Panasonic AH1.
Flux-proof, for straight PCB connection; .Contact type: CO. Switching voltage: 30 VDC/125 VAC. Switching current range: AH14609 from 0.1 to 3.0 A, AH1462619 from 1.0 mA to 0.1 A. Useful life: mechanical 300000 cycles, electrical for AH14609/AH1462619 20000/200000 cycles. Contacts: AgNi alloy for AH14609, gold-plated AgNi alloy for AH1462619. Degree of protection: IP 40. Certifications: UL, CSA.
With plunger actuator, type AH1.
Technical attributes (type, actuating force): AH14609, 1.47 N
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | pin plunger | |
| Breaking capacity | 3 A/125 VAC, 2 A/30 VDC | |
| Latching switching function | On-On | |
| actuating force | 1.47 N | |
| Connection | PCB connection | |
| Design | straight | |
| Protection class | IP40 | |
| Switching point | 5.5 mm ±0.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
