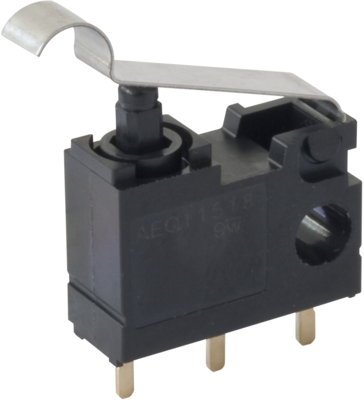

AEQ10418 | Panasonic

Ultraminiature snap-action switche, On-On, solder connection, roller hinge lever, 1.5 N, 0.1 A/30 VDC, IP40, AEQ10418

Order No.: 34G4738
EAN: 4099889216646
MPN:
AEQ10418
Series: AEQ3
AEQ10418 Panasonic Snap Action Switches
Image may differ
Unit Price (€ / pc.)
3.8437 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
384.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
3.8437 €

Ultraminiature-Switch, AEQ10418, PANASONIC

Ultraminiature-Switch, Low level Load, IP40, 3 mm mounting hole, boss type, solder terminal type, SPDT, Simulated Leaf lever.

Features

  • Ultra-long stroke
  • Silent operation
  • Household appliances and air purifiers for safety purpose
Technical specifications
Actuator roller hinge lever
Breaking capacity 0.1 A/30 VDC
Switching point 12 mm ±0.5 mm
Design straight
Connection solder connection
Protection class IP40
Latching switching function On-On
actuating force 1.5 N
Logistics
Country of origin JP
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
