ERJP08J243V | Panasonic

Name: Resistor, thick film, SMD 1206 (3216), 24 kΩ, 0.66 W, ±5 %, ERJP08J243V
Brand: Panasonic
SKU: 85E6412
Price: 0.04 EUR
Availability: OutOfStock

Resistor, thick film, SMD 1206 (3216), 24 kΩ, 0.66 W, ±5 %, ERJP08J243V

Order No.: 85E6412

EAN: 4099879412652

MPN:

ERJP08J243V

Series: ERJP08

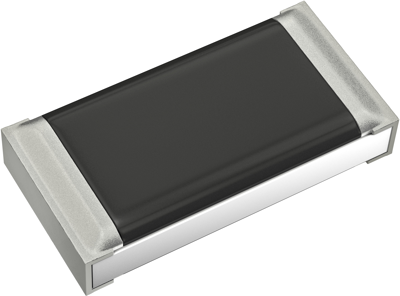

Image may differ

Key Specification:

ohmic resistance 24 kΩ

Tolerance ±5 %

Power 0.66 W

Design SMD 1206 (3216)

Show 169 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0428 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.04 € *

*incl. VAT plus shipping costs

**Subject to prior sale

5000 pcs.

0.0428 €

Description

Technical specifications

Description

SMD Thick film resistor, ERJP08J243V, Panasonic

Resistor, Thick film, SMD 1206, 24 kΩ, 0.66 W, ±5 %

Features

High reliability
High power
Reference Standard: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
RoHS compliant

Technical specifications

	ohmic resistance	24 kΩ
	Design	SMD 1206 (3216)
	Width	1.6 mm
	Height	0.6 mm
	Length	3.2 mm
	Power	0.66 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±5 %
	Technology	thick film
	Temperature coefficient	±200 ppm/K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
