ERJ12ZYJ201U | Panasonic

Name: Resistor, thick film, SMD 2010 (5025), 200 Ω, 0.75 W, ±5 %, ERJ12ZYJ201U
Brand: Panasonic
SKU: 84E1605
Price: 0.15 EUR
Availability: OutOfStock

Resistor, thick film, SMD 2010 (5025), 200 Ω, 0.75 W, ±5 %, ERJ12ZYJ201U

Order No.: 84E1605

EAN: 4099879290236

MPN:

ERJ12ZYJ201U

Series: ERJ12Z

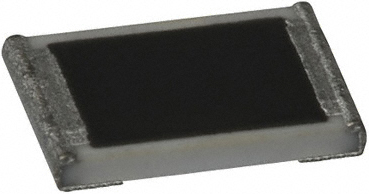

Image may differ

Key Specification:

ohmic resistance 200 Ω

Tolerance ±5 %

Power 0.75 W

Design SMD 2010 (5025)

Show 170 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1547 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.15 € *

*incl. VAT plus shipping costs

**Subject to prior sale

5000 pcs.

0.1547 €

Description

Technical specifications

Description

SMD Resistor, ERJ12ZYJ201U, Panasonic

Resistor, Thick film, SMD 2010, 200 Ω, 0.75 W, ±5 %

Features

Small size and lightweight
High reliability Metal glaze thick ﬁlm resistive element and three layers of electrodes
Compatible with placement machines Taping packaging available
Suitable for both reﬂow and ﬂow soldering
RoHS compliant

Technical specifications

	ohmic resistance	200 Ω
	Design	SMD 2010 (5025)
	Width	2.5 mm
	Height	0.6 mm
	Length	5 mm
	Power	0.75 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±5 %
	Technology	thick film
	Temperature coefficient	±200 ppm/K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
