ERA6AHD25R5V | Panasonic

Name: Resistor, metal film, SMD 0805 (2012), 25.5 Ω, 0.125 W, ±0.5 %, ERA6AHD25R5V
Brand: Panasonic
SKU: 83E5002
Availability: InStock

Resistor, metal film, SMD 0805 (2012), 25.5 Ω, 0.125 W, ±0.5 %, ERA6AHD25R5V

Order No.: 83E5002

EAN: 4099879247360

MPN:

ERA6AHD25R5V

Series: ERA6AHD

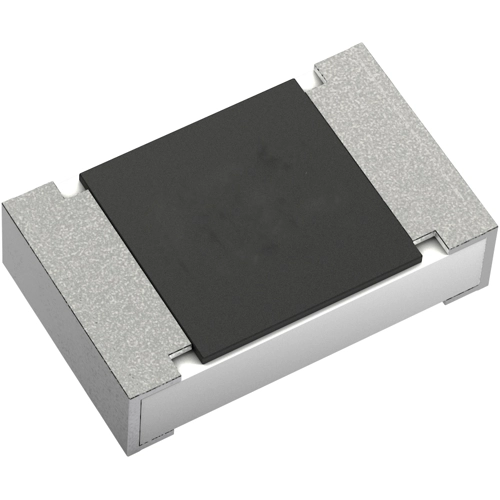

Image may differ

Key Specification:

ohmic resistance 25.5 Ω

Tolerance ±0.5 %

Power 0.125 W

Design SMD 0805 (2012)

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

0.1392 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

696.15 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Metal Film Chip Resistor, ERA6AHD25R5V, Panasonic

Resistor, Metal film, SMD 0805, 25.5 Ω, 0.125 W, ±0.5 %

Features

High reliability
High accuracy
High performance
RoHS-konform

Technical specifications

Filter	Property	Value
	ohmic resistance	25.5 Ω
	Tolerance	±0.5 %
	Power	0.125 W
	Design	SMD 0805 (2012)
	Temperature coefficient	±50 ppm/K
	Technology	metal film
	min. operating temperature	-55 °C
	max. operating temperature	155 °C
	Length	2 mm
	Width	1.2 mm
	Height	0.5 mm
