ERA3AEB9090V | Panasonic

Resistor, metal film, SMD 0603 (1608), 909 Ω, 0.1 W, ±0.1 %, ERA3AEB9090V

Order No.: 83E2561
EAN: 4099879222961
MPN:
ERA3AEB9090V
Series: ERA3AEB
Panasonic
default L

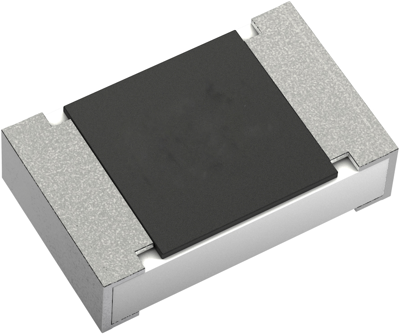

Image may differ
Print
Key Specification:
ohmic resistance 909 Ω
Tolerance ±0.1 %
Power 0.1 W
Design SMD 0603 (1608)
Show 438 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0714 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.0714 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Metal Film Chip Resistor, ERA3AEB9090V, Panasonic

Resistor, Metal film, SMD 0603, 909 Ω, 0.1 W, ±0.1 %

Features

  • High reliability
  • High accuracy
  • High performance
  • RoHS-konform
Technical specifications
ohmic resistance 909 Ω
Design SMD 0603 (1608)
Width 0.8 mm
Height 0.45 mm
Length 1.6 mm
Power 0.1 W
max. operating temperature 155 °C
min. operating temperature -55 °C
Tolerance ±0.1 %
Technology metal film
Temperature coefficient ±25 ppm/K
Show similar products 0
Logistics
Country of origin JP
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
