LR20PPG/2BP | Panasonic
Alkali manganese-battery, 1.5 V, LR20, D, round cell, surface contact, LR20PPG/2BP
Order No.: 26A138
EAN: 5410853038887
MPN:
LR20PPG/2BP
This item is no longer available.
As an alternative, we recommend the following item:
Alkali manganese-battery, 1.5 V, LR20, D, round cell, BYB-6-30A2010
Order No.: 30A2010
Manufacturer: by.B
per pc. 1.1781 € *

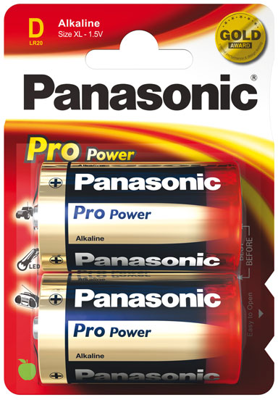

Alkaline Manganese Battery, LR20PPG/2BP, Panasonic
Features
- Long service life
- Very high amperage
- Extremely heat resistant
- Leak protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | round cell | |
| Technology | alkali manganese | |
| IEC designation | LR20 | |
| other designation | mono | |
| Rated voltage | 1.5 V | |
| Nominal capacity | 1.2 Ah | |
| Size | D | |
| Height | 61.5 mm | |
| diameter | 34.2 mm | |
| Connection | surface contact | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 45 °C | |
| Usage | general applications |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85061011 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
