VL1220-1HF | Panasonic

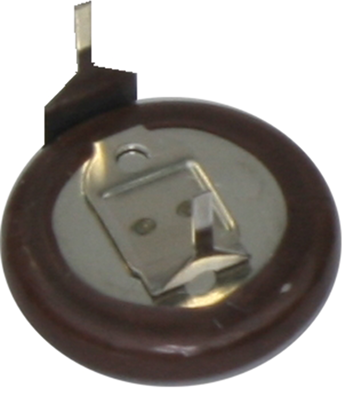

Button cell battery, vanadium pentoxide lithium, 3 V, 7 mAh, VL1220-1HF
Order No.: 26A6570
EAN: 4099891613921
MPN:
VL1220-1HF
Unit Price (€ / pc.)
3.6176 € *
Available: 17 pcs.
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.1892 €
100 pcs.
2.7846 €
250 pcs.
2.6775 €
1000 pcs.
2.5109 €
*incl. VAT plus shipping costs
Subject to prior sale
Vanadium pentoxide lithium accumulators, type Panasonic VL.
Button cell with solder pins
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Usage | data backup applications | |
| diameter | 13 mm | |
| max. operating temperature | 60 °C | |
| Technology | vanadium pentoxide lithium | |
| Connection | 2 plug solder pins | |
| Rated voltage | 3 V | |
| Nominal capacity | 7 mAh | |
| min. operating temperature | -20 °C | |
| Height | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85076000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | not_relevant |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
