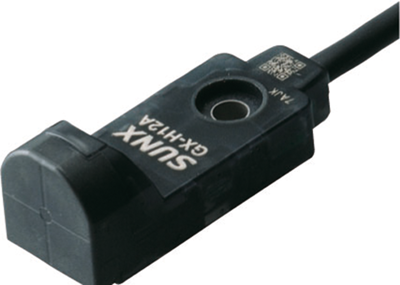

GX-H12A-P | Panasonic
Inductive sensor, PNP, Surface mounting, 1 Form A (N/O), 15 mA, GX-H12A-P
Unit Price (€ / pc.)
59.2858 € *
Standard delivery time from the manufacturer is: On Request
Inductive proximity sensors, type Sunx/Panasonic GX.

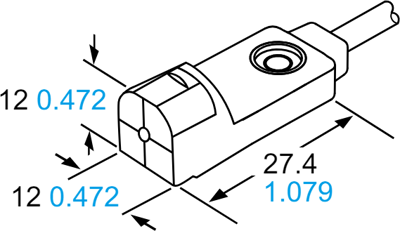

For non-contact detection of metallic objects. Flat design. Short circuit-proof. Integrated amplifier and switching status LED; Operating voltage: 12 to 24 VDC. Switching frequency: 500 Hz. Sensing range 0 to 4.0 mm. Output: PNP transistor, 100 mA. Housing material: PBT. Degree of protection: IP 68g. Termination: 1.0 m cable. Dimensions side/head sensor: 27.8 x 12 x 7.1 mm/27.4 x 12 x 8.65 mm.
Technical attributes (type, version, switching mode): GX-H12A-P, head, NO function
Technical specifications
| Detecting distance | 4 mm | |
| Degree of protection (IP) | IP68 | |
| Assembly | Surface mounting | |
| switching current | 15 mA | |
| Product type | inductive sensor | |
| Version | PNP | |
| Connection | cable, 0.15 mm², 1 m | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
