EEHZA1V220R | Panasonic

Hybrid capacitor, SMD, 22 µF, 35 V, ±20 %, EEHZA1V220R

Order No.: 10D4405
EAN: 4099879882738
MPN:
EEHZA1V220R
Series: EEHZA
EEHZA1V220R Panasonic Polymer and Hybrid Capacitors

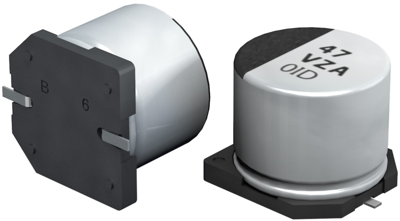

Image may differ
Unit Price (€ / pc.)
1.1305 € *
Available: 953 pcs.
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
0.8092 €
100 pcs.
0.6902 €
500 pcs.
0.6069 €
1000 pcs.
0.5474 €
*incl. VAT plus shipping costs
Subject to prior sale

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Surface Mount Type

Features

  • Endurance: 10000 h at 105 °C
  • Low ESR and high ripple current (70 % over, Lower ESR than current V-FP)
  • High voltage (to 80 V.DC)
  • Equivalent to conductive polymer type aluminum electrolytic capacitor (There are little characteristics change by temperature and frequency)
  • Vibration-proof product is available upon request
  • AEC-Q200 compliant
  • RoHS compliant
Technical specifications
Filter Property Value
Tolerance ±20 %
Rated voltage (DC) 35 V
Design SMD
Ripple current 900 mA
Capacity 22 µF
ESR (Equivalent Series Resistance) 100 mΩ
Logistics
Property Value
Original Packaging Reel with 1,000 pieces
Customs tariff number 85322200
Country of origin JP
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
