EEFCX1A101R | Panasonic
Polymer capacitor, SMD, 100 µF, 10 V, ±20 %, EEFCX1A101R
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: On Request

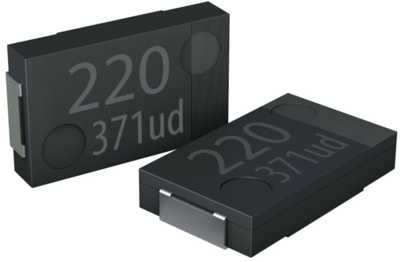

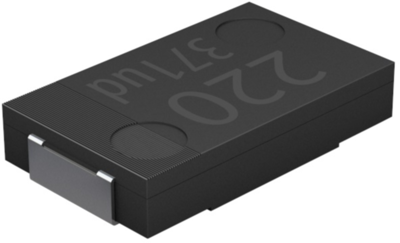

Aluminium polymer capacitor, EEFCX1A101R, Panasonic
Surface Mount Type
Features
- High voltage (35 V.DC max.)
- Low profile (Height 1.0 mm max.)
- High ripple current (5600 mAr.m.s. max.)
- RoHS compliance, Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |
| max. operating temperature | 105 °C | |
| Length | 7.3 mm | |
| min. operating temperature | -55 °C | |
| Ripple current | 3.2 A | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 40 mΩ | |
| Rated voltage (DC) | 10 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 3,500 pieces |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
