8TPC22M | Panasonic
Polymer capacitor, SMD, 22 µF, 8 V, ±20 %, 8TPC22M
Unit Price (€ / pc.)
0.6426 € *
Available: 1,210 pcs.
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6426 €
50 pcs.
0.5831 €
250 pcs.
0.5236 €
1000 pcs.
0.4760 €
2000 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

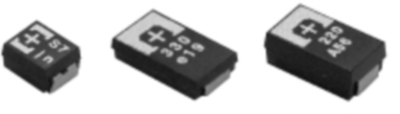

Tantalum polymer capacitor, 8TPC22M, Panasonic
Features
- Low profi le (Height 1.1 mm)
- RoHS compliance, Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Ripple current | 1 A | |
| max. operating temperature | 105 °C | |
| Design | SMD | |
| Length | 3.5 mm | |
| Capacity | 22 µF | |
| ESR (Equivalent Series Resistance) | 70 mΩ | |
| Rated voltage (DC) | 8 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Country of origin | ID |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
